Use iRepair P12 NAND programmer to Repair iPhone

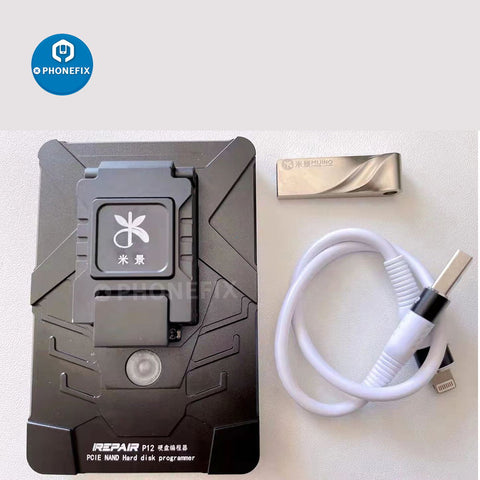

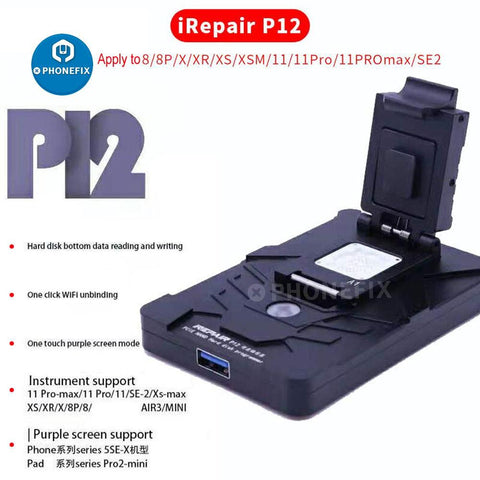

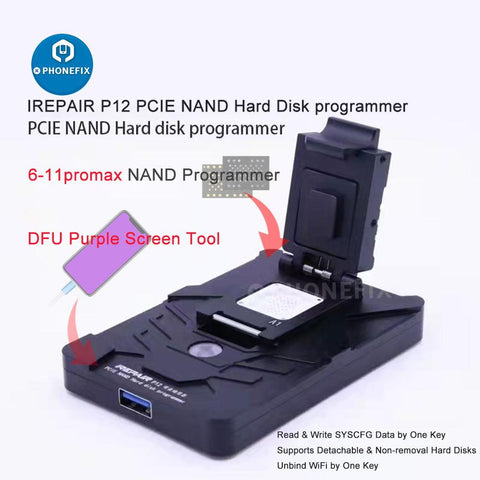

iRepair P12 NAND Programmer is a BGA60 /BGA70/ BGA110 PCIE NAND Programmer and purple screen mode tool. The P12 Box can achieve SYSCFG data read, modification and formatting, Unbind WiFi, one-click Purple Screen,.etc. In the article, I will show you how to use iRepair P12 NAND Programmer in detail.


There is no need internet or restoring device firmware when you use the item, and it supports for both detachable and non-removal hard disks. Besides, you can upgrade it for free. The box suitable for iPhone 6-11 pro max and iPad.

A. How to Read & Write SYSCFG Data

1. Put the hard disk in the programmer.

2. Select the corresponding mobile phone model. The data of the current selected model will be displayed in the data area.

Double-click the corresponding item value to modify the required data as required.

3. Make sure format, write partition, WiFi unlock, Write data are selected, and then click one-click programming.

4. After programming, put the hard drive into the phone and open iTunes or AceDeceiver to flash the phone.

For BGA110 hard disk, to expand or replace a hard disk, you need to remove and replace the original hard disk.

1. Remove the original hard drive with YIHUA 8858 Soldering Rework Station. Wipe off solder balls from soldering, and put hard disk in the programmer (note the direction).

2. Select a disk read/write mode. The system automatically reads the model of the original hard disk, and then select the user backup options. Click backup SYSCFG and the save file interface is displayed.


3. After the file is saved, the current backup data is displayed in the data information box.

4. Remove the original hard disk from the hard disk programmer with screwdriver and place the new hard disk to be expanded in the hard disk.

Make sure format, write partition, WiFi unlock, Write data, and function are selected, and then click one-click programming.

5. After programming, put the hard drive into the phone and open iTunes or AceDeceiver to flash the phone.

B: iRepair Box DFU Purple Screen Tool

IRP12 Purple Screen mode - Unbind WiFi

1. After the WiFi module is replaced, open the software and select the purple screen mode.

2. Make the phone enter DFU mode, and connect the instrument and mobile phone with its own data cable.

3. Click the Purple Screen to enter the purple screen mode.

4. After entering the Purple Screen mode, click to unbind WiFi.

IRP12 Purple Screen mode - Disk capacity expansion

Before disk expansion, save the original data.

1. After the WiFi module is replaced, open the software and select the purple screen mode.

2. Make the phone enter DFU mode. Connect the P12 Box tool to iPhone with its own data cable.


3. Click Back up Underlying Data to start backing up the underlying data of the original iPhone.

4. After the backup is complete, a dialog box is displayed to save underlying data and files of the iPhone.

5. Remove the original hard disk. Flash the phone and then put the iPhone into DFU mode.

6. Connect the built-in Data Cable and click the Purple Screen to enter the purple screen interface.

7. Select the file you just backed up. Click Write user backup and wait for the write to complete.

8. Click to unbind WiFi. Connect ituens or Ace assistant for brush and activation.


Besides, iBox 2 is also available for entering purple screen mode quickly, and hold the similar function with the P12 box.

All in all, the iRepair P12 Ultimate Nand Programmer support full more about 33 models IOS device's NAND Disk. The iRepair P12 box from China Phonefix shop is suitable for PCIE read and modification, Boot file read /write, SYSCFG data modification & write, WiFi Unbind, and can help you achieve purple screen by one key.
